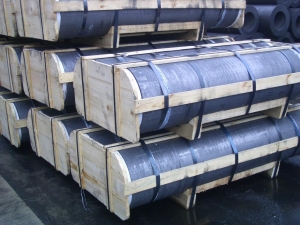

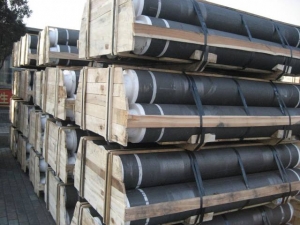

UHP Graphite Electrode

Description:

Our graphite electrodes are with low resistance, high density, compact structure, anti-oxidation and precise processing, then they are the best conductive material for EAF and LF.

  • Additional Description
  • Make an Inquiry Now

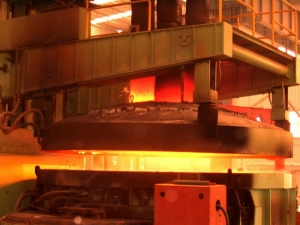

Graphite electrodes are used for the recycling of steel in the electric arc furnace industry, so called "mini-mills." We do not simply provide graphite electrodes and nipples as stand alone products to our customers. Rather, the focus is on the delivery of an entire "product system", supported by sales and technical experts from the receipt of the customer's order, throughout the entire production process, to final product in the steel plants.



Specification for UHP Graphite Electrode:

Item
Unit
Nominal Diameter mm
≤ Φ400
≥ Φ450
Resistivity
electrode
μ Ω·m
4.0--5.3
4.0-5.5
nipple
3.8
3.8
Bending Strength
electrode
Mpa
≥ 12.0
≥ 12.0
nipple
≥ 24.0
≥ 24.0
Elastic Modulus
electrode
Gpa
≤ 14.0
≤ 14.0
nipple
≤ 18.0
≤ 18.0
Bulk Density
electrode
G/cm3
≥ 1.68
≥ 1.68
nipple
≥ 1.75
≥ 1.75
C.T.E
(100~600℃)
electrode
10-6/℃
≤ 1.3
≤ 1.3
nipple
≤ 1.2
≤ 1.2
ASH
electrode
%
≤ 0.3
≤ 0.3
nipple
≤ 0.3
≤ 0.3



Suggested Current Capacity and Current Density:

Diameter

RP

HP

UHP

mm

Current Load (A)

Current Density (A/cm2)

Current Load (A)

Current Density (A/cm2)

Current Load (A)

Current Density (A/cm2)

200

5000-6900

15-21

5500-9000

18-25

250

7000-10000

14-20

8000-13000

18-25

300

10000-13000

14-18

13000-17400

17-24

15000-22000

20-30

350

13500-18000

14-18

17400-24000

17-24

20000-30000

20-30

400

18000-23500

14-18

21000-32000

16-24

25000-40000

19-27

450

22000-27000

13-17

25000-40000

15-24

32000-45000

19-27

500

25000-32000

13-16

30000-48000

15-24

38000-55000

18-27

550

32000-41000

13-16

37000-58000

15-23

45000-65000

18-27

600

38000-47000

13-16

44000-67000

15-23

52000-75000

18-26

650

45000-54000

13-16

54000-73000

15-23

62000-95000

18-24
